ErgoStrap | Automated Pallet Strapping System

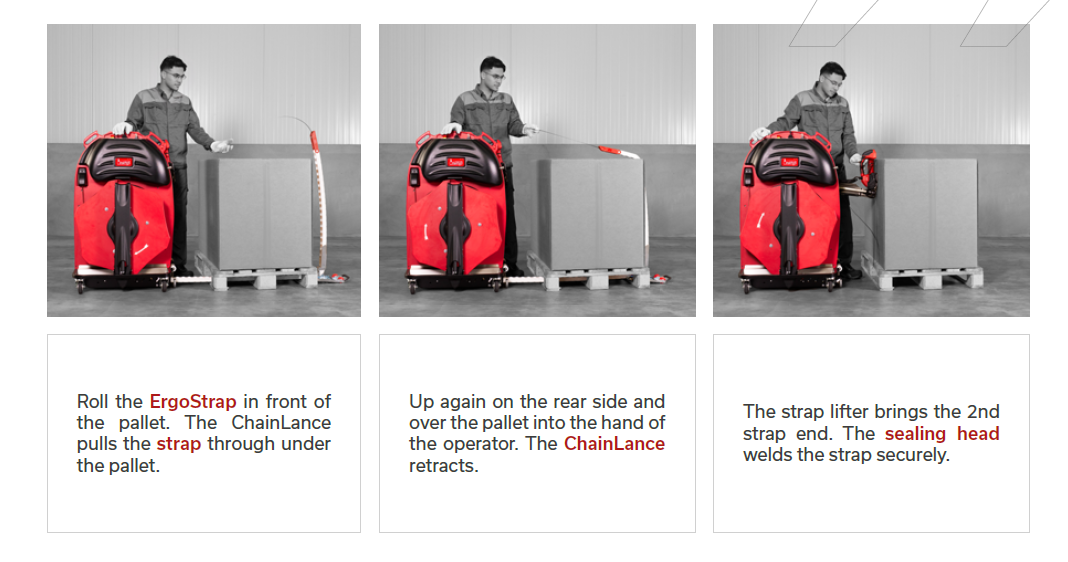

ErgoStrap is an ergonomic, mobile, battery-powered system designed to streamline pallet strapping without the bending or uncomfortable motions that lead to employee fatigue and injuries.
This innovative system significantly improves efficiency by as much as 2X quicker than manual strapping, contributing to a faster, safer work environment.
Basic Models
ErgoStap Product Details
The ErgoStrap X-pert Line combines an advanced strapping system with innovative battery technology.
Ergonomics and efficiency are maximized through the latest lithium battery technology for extended operating time.
- Electronically controlled drive with joystick operation
- Lithium battery
- Integrated line laser
- Battery charger included
- ErgoStrap Tool-Lift (for pallets starting at 31.5 in / 80 cm in height)
- Built-in sealing head
- Operation via industrial touchscreen
ErgoStrap X-Pert Line Includes:
- Touchscreen Intuitive Guide
- Sealing Head: Fully integrated sealing head with touchscreen and ergonomically designed operating elements
- Consistent Strap Tension: Adjust the tension to meet the application requirements
- Tool Lift: Sealing tool is mounted to eliminate repetitive weight and vibration affects
- Laser: The Line-Laser shows the associate where to position ErgoStrap in front of the pallet
- Ergonomically designed handles for comfortable and lightweight machine mobility

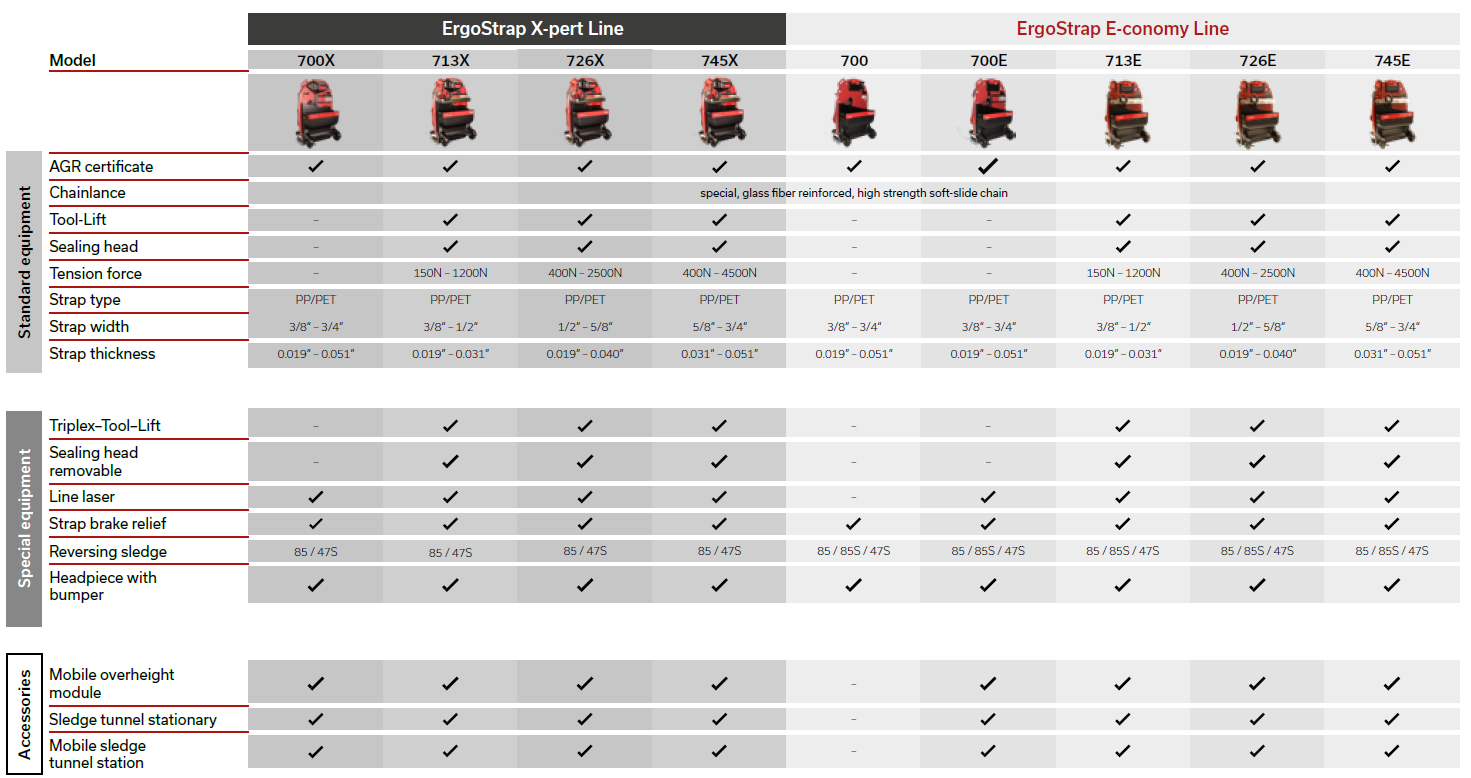

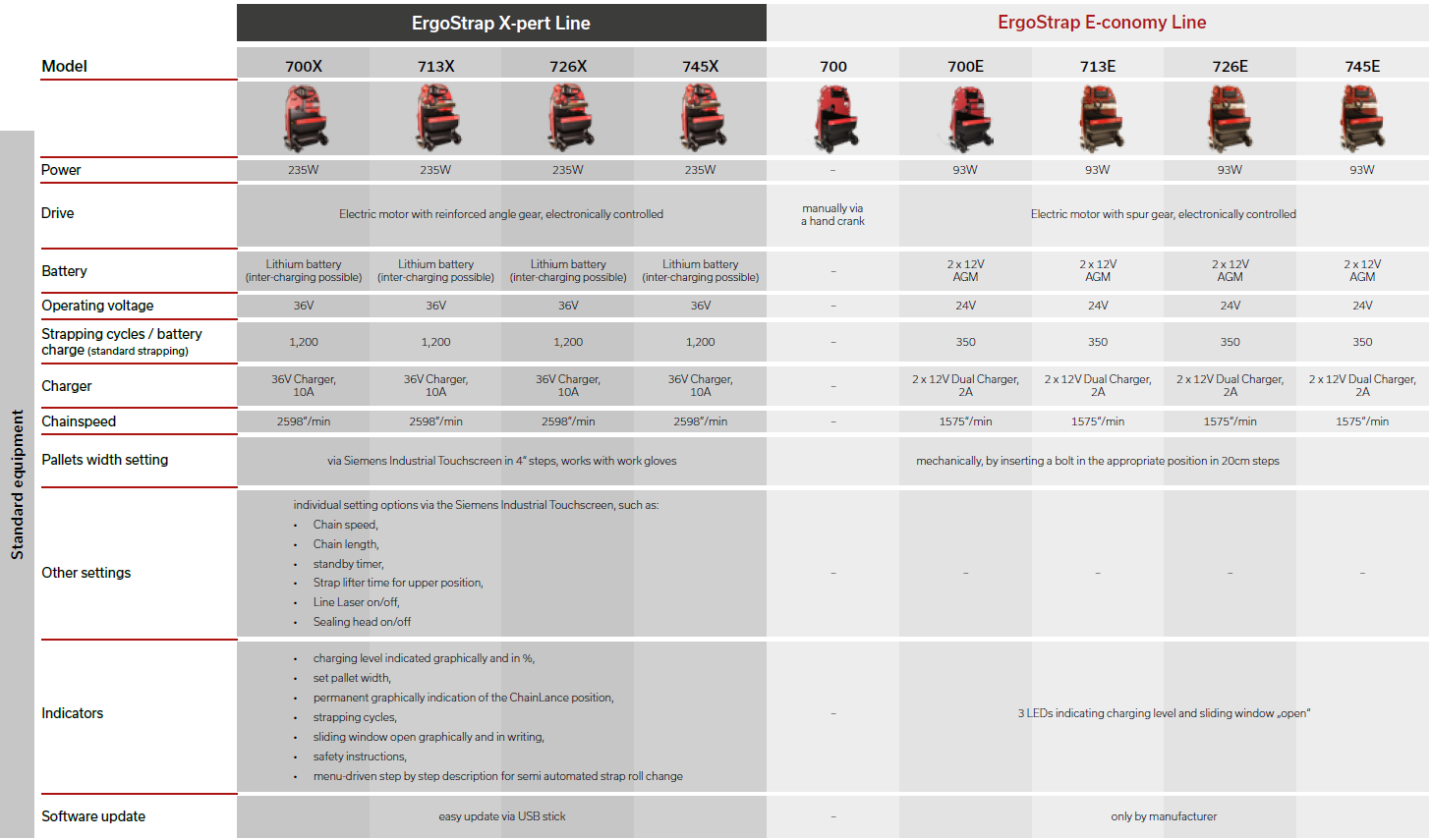

Each model delivers the same strapping functionality, with some performance and feature differences
