Continental - 2003/2004/2006 RCM

Continental - 2003/2004/2006 RCM

The Continental 2003, 2004, and 2006 RCM Seamers are high-speed can seamers that create a reliable hermetic seal to preserve product freshness and food safety while supporting production rates of up to 600 containers per minute. Designed with interchangeable components, fast changeovers, and flexible configurations for a wide range of can sizes, they reduce maintenance costs, simplify operation, and improve overall manufacturing efficiency.

Request Pricing
Questions? We can help.
Contact a Packaging Specialist for product & pricing information.
888-880-0852

About Continental - 2003/2004/2006 RCM

BW Packaging's Continental seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. This airtight closure keeps the product fresh and avoids the risk of food poisoning.

Excellent safety is not the only benefit of the 2003, 2004 and 2006 RCM. They have been designed for an efficient, economical can-making operation. Our engineers created the RCM series for maximum value by designing many of the parts to be interchangeable, even though the seamer is being built to your unique specifications. The result is:

  • Lower cost to build the machine because of the large manufacturing lots of common parts
  • Shorter lead and assembly time, since we can assemble the machine required to fill your exact requirements from a stock of common parts
  • Better parts prices and delivery due to the large number of common parts utilized on all models
  • Lower customer investment on spare parts inventory; the ability to maintain a single set of common emergency spare parts to cover the majority of requirements for 3, 4 and even 6 spindle machines

The 2003, 2004 and 2006 RCMs have been designed with the versatility necessary to accommodate the full range of products and can sizes packed in your plant. Height changeovers are accomplished in minutes thanks to a dynamic concept that provides for the support and driving of all height change-related components directly from the top housing. The simplicity of design provides ease of operation and maintenance for even new personnel. Contact us today to speak with one of our Continental experts about the specific requirements of your project. We're happy to assist you.



Product Details

  • Runs at speeds of up to 600 containers per minute (CPM)
  • Three, four and six seaming spindles available
  • Individual 1st and 2nd operation seaming roll shanks
  • Segmented seaming head/spindle and shank assemblies
  • Positive control of can/cover for perfect alignment onto seaming chuck, so mis-assembly is eliminated
  • 360° rotation of the filler in-motion timing device
  • Three infeeds are available, ensuring you have the perfect one for your application
  • Easy to use one level cover guides
  • Height changeovers can be accomplished in minutes thanks to the simplicity of the design
  • Designed for ease of operation and maintenance, it won’t take long for your operators to be proficient on this equipment
  • Non-interlocking rolls
  • Quick change of seaming spindle speed alternatives
  • Comes with a complete operators' manual, including diagrams, best practices, how-to instructions for set up and maintenance, as well as maintenance schedules and a parts list



Technical Data

  • Seams cans between 2-11/16 - 6-5/8" (68.28 - 168.28 mm) in diameter
  • Seams cans between 2-1/2 - 9-5/8" (63.5 - 244.48 mm) high (standard tin line)
  • Single horizontal chain pitch is 10.336" (262.53 mm)
  • Dual (vertical/horizontal) chain pitch is 9.750" (247.65 mm)
  • Net weight is approximately 5,850 lbs (2,647 kg)
  • Maximum height is 90.72" (230.43 cm)
  • Width is 54" (137 cm)
  • Basic length is 74.2" (188.5 cm)

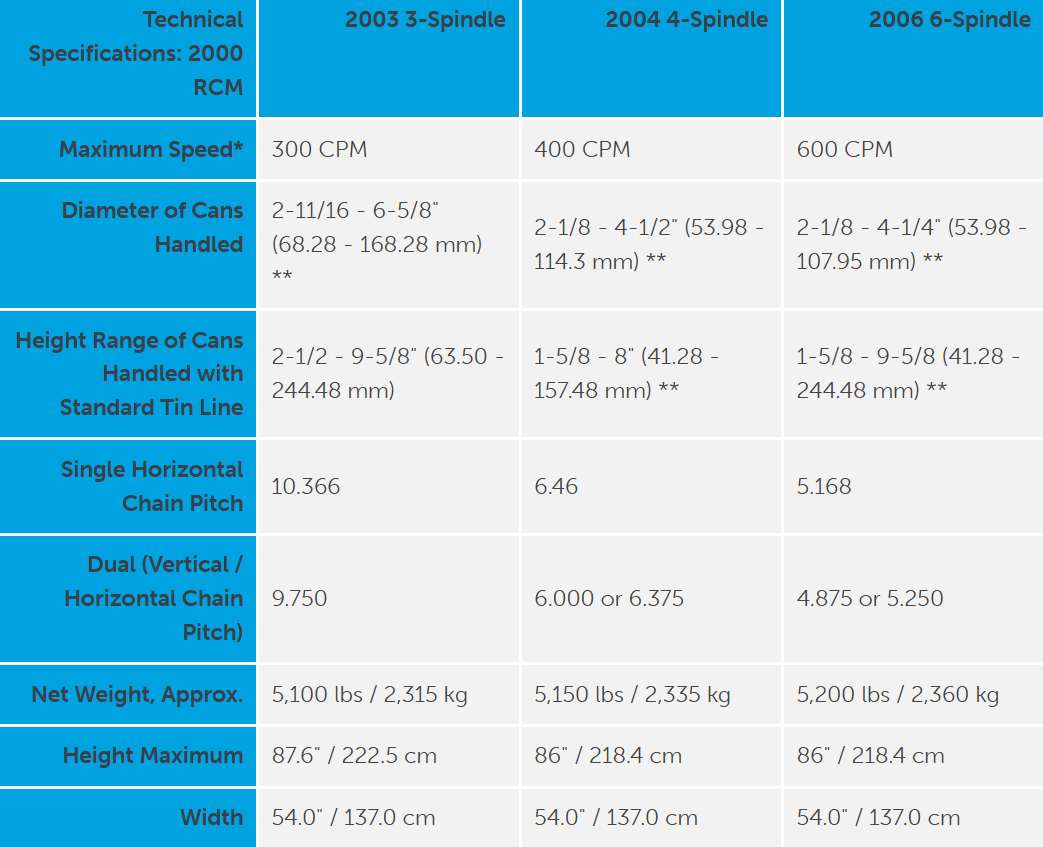

Technical Specifications: 2000 HCM

* Speed is dependent on can size, type, and type of drive.

** With appropriate change parts. Outside this range, consult your sales person.
