About Dairy Pack RM40B Inline Bottle Filler
Dairy Pack Bottle Filling Solutions
The RM40B is a compact and cost-efficient bottle filler, ideal for dairy beverage lines filling up to 12,000 bottles/hour, exists in "combi" with a bottle blower and can be extended to 24,000 bottles/hour in an RM80B configuration. Dairy Pack RM80B is a wider version of the RM40B, adding a parallel line that doubles the output. All systems and technologies are common to both models and can be applied without reservation.
The Dairy Pack filling equipment is mainly used for dairy products and is available in a Combi configuration with a bottle blower. The Combi configuration combines blowing, filling, and capping for PET bottles.
The RM40B offers increased volume capacity and higher speeds. We can deliver a wide range of decontamination levels according to shelf-life needs and storage conditions. It benefits from Dairy Pack's proven expertise built up over several years in filling complex products for large international groups.
Beverage Equipment for Your Recipes
Our RM40B bottle filling machine for preformed bottles is known for its extremely high filling accuracy. We can also deliver a wide range of decontamination levels according to shelf-life needs and storage conditions. This machine's compact footprint and cost-efficiency are ideal for small beverage lines.
Product Details
High Operational Efficiency
- Customizable speed up to 30 cycles per minute
- Production output up to 12,000 bottles/hour and 24,000 for the RM80B
- Filling various formats from 80 to 1500 ml
- Up to 2 different bottle neck diameters
- Materials: PET, HDPE, PP and PS
- Compliant with CE regulations
- Operations at chest height (110 cm/43.3 in)
Adapted to Sensitive Products
- Hygiene level adapted to your product specifications
- Suitable for most homogeneous and pumpable products with fruit pieces
- BW Packaging offers a global commitment for hygienic, integrity and accuracy of the filled products.
- Fill testing available for customer product optimization and faster ramp-up
Compact with Easy Access & Cleaning
- Footprint (m) : 7 L x 4 W x 3 H
- Fast and efficient cleaning
- High visibility on stations and tooling
- High accessibility for inspections, maintenance and cleaning operations
- Customizable HMI visualization for optimized production reporting
Technical Data
- Output: up to 12,000 bottles/hour and 24,000 for the RM80B
- Pace: up to 30 cycles/min
- Dosed Product Range: 80 – 1,500 ml
- Material: PET, HDPE, PP and PS
- Compliant with CE regulations
Options
Additional equipment will be integrated from selected suppliers who meet the same standards for quality and reliability. Suppliers of your choice can also be integrated, following a technical assessment.

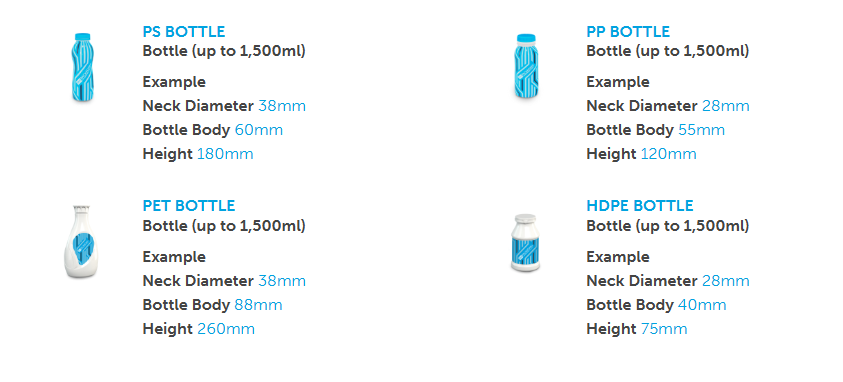

Packaging Styles
