About Hema CANSM
The Hema CANSM is designed for variously shaped cans — whether round or profiled — and can handle between 4,800 and 9,000 cans per hour. It is ideal for products like corned beef, luncheon meat, meat pâté, fish cans, and more. It is compatible with metal cans in a variety of shapes: round, oval, square, rectangular, trapezoidal, and pear-shaped. Depending on your product's requirements, this seamer is available in two configurations: vacuum or atmospheric.
The Strengths of Hema CANSM:
- Reliable performance
- Standardized Machine Design
- Robust and easy to operate
- Optional turnkey line configuration
Product Details
Reliable Performance
- Speed up to 150 cans per minute
- High-speed clinching with vertical movement chuck
- Different formats: round, rectangular or trapezoidal, with or without slope
- Adaptable to various specifications:
- Diameter: 45 to 155 mm
- Diagonal: 45 to 170 mm
- Height: 20 to 250 mm
Standard Machine Features
- Vacuum seaming to maintain preservation and optimal appearance of the product
- Seaming profile quality ensured by cam and counter cam
- "No can-no lid" to limit losses
- Lid distributor equipped with a scroll separator operating from dispenser. This allows the lid to be lowered gradually and synchronously with the can, even if the product protrudes from the can with a dome, as the lid is guided to its position on the can.
Robust and Easy to Operate
- Continuous motion conveyor and placing of clinched cans into a transfer starwheel
- Seaming head mounted on an articulated arm giving full accessibility
- Compression pad driven by a double track cam
- Robust mechanical parts running in oil bath for longer durability
Turnkey Line Configuration
- Our expertise in filling and seaming can be extended to create complete lines combining filling up to 24,000 cans per hour
- Hema volumetric filler, linear or rotary technology
- Hema vacuum seamer for shaped or round cans or Angelus atmospheric seamer for round cans at high speed
- We can integrate other functionalities to your can line: depalletizer, magnetic lowerator, check weigher, magnetic washer, basket unloader and loader, labeler
Technical Data
- Speed: 80 to 150 cans per minute
- Containers: Metal Cans (round or shaped)
- Diagonal: 45 to 170 mm
- Diameter: 45 to 155 mm
- Height: 20 to 250 mm
For a higher size, please contact us.
Options
Additional equipment will be integrated from selected suppliers who meet the same standards for quality and reliability. Suppliers of your choice can also be integrated, following a technical assessment.

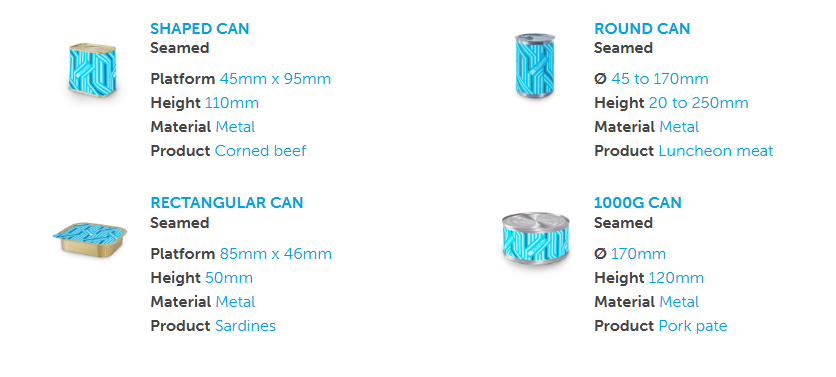

Packaging Styles
