The Dairy Pack DP40C is a flexible inline cup filling machine designed for small to medium production facilities, offering efficient, hygienic filling and sealing of plastic, paper, and aluminum containers at speeds up to 9,000 cups per hour (or 18,000 with the DP60C model). It supports a wide range of product formats, customizable configurations, multi-layer filling options, and gentle handling of dairy and food products while enabling easy cleaning and maintenance.

Request Pricing
Questions? We can help.
Contact a Packaging Specialist for product & pricing information.
888-880-0852

About Dairy Pack DP40C Inline Cup Filler

The DP40C filling machine is renowned for its high operational efficiency and exceptional product handling. Designed with user-friendliness and customizable specifications in mind, it is ideal for small to medium production sites, handling up to 9,000 cups per hour. For higher capacity needs, the DP60C variant doubles the output to 18,000 cups per hour.



Product Details

High Operational Efficiency

  • Production speed up to 9,000 cups/hour (18,000 for DP60C version)
  • Customizable speed up to 25 cycles per minute
  • Footprint (m): 3.5W x 3H x 8.5L (12.5L for DP60C)
  • Filling various formats from 90 to 500g
  • Materials: Plastic, Paper and Aluminum

Specification Driven Design

  • Up to 3 different fillers for multi-layer products
  • Machine stations can be added to fit your needs (optional cup inserter, decontamination, filling stations, control stations, lid or overcap, topper...)
  • Conceived for fast and efficient cleaning
  • High accessibility for inspections, maintenance and cleaning operations
  • Customizable HMI visualization for optimized production reporting

Gentle Product Handling

  • Suitable for most homogeneous and pumpable products with fruit pieces
  • BW Packaging offers a global commitment for hygienic, integrity and accuracy of the filled products
  • Filler device outside the filling area for ultra-clean hygiene and extractible filler heads for optimized safety in CIP (optional)
  • Fill test available for product optimization and vertical startup



Technical Data

  • Output: up to 9,000 cups per hour (18,000 for DP60C version)
  • Pace: up to 25 cycles/min
  • Dosed Product Range: 90 - 500 ml
  • Material: Plastic, Paper and Aluminum
  • Compliant with CE regulations
DAIRY PACK DP40C also exists for buckets :
  • Volume: 1,000 to 2,500 ml
  • Speed: 1,500 to 4,100 units/hour
  • Platform: 150 to 270 mm
  • Height: up to 180 mm



Options

Additional equipment will be integrated from selected suppliers who meet the same standards for quality and reliability. Suppliers of your choice can also be integrated, following a technical assessment.

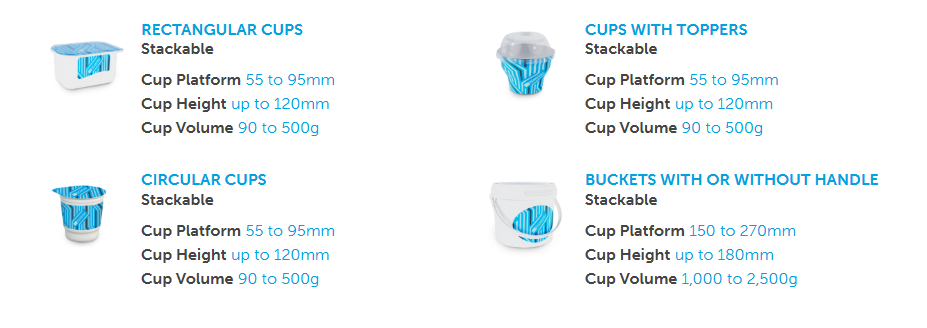

Packaging Styles
