Hema NUTRI Rotary Filler for the Sauce & Dressings Market

Hema NUTRI is a high-precision rotary filling machine designed for sauces and dressings, including products with particulates, offering flexible configurations, multiple dosing technologies (weight, mass flow, or volumetric), and production speeds of up to 40,000 containers per hour. Built to stringent 3A and EHEDG hygiene standards, it supports a wide range of container types and sizes, enables fast recipe and format changeovers, minimizes product loss, and can be integrated with capping, rinsing, trimming, or PET bottle blow-molding systems.

Request Pricing
Questions? We can help.
Contact a Packaging Specialist for product & pricing information.
888-880-0852

About Hema NUTRI

Electronic Rotary Filler for Hema and Filling Solutions

Hema NUTRI is dedicated to the particulate and non-particulate sauce and dressing market. It benefits from Hema's proven expertise built up over several years in the area of filling complex products for large international groups.

This Hema packaging solution is a rotary filling machine for sauces and dressings, available in Monobloc configuration with a capper or thermosealer. NUTRI filler can also be synchronized to a neck trimmer or a rinser. Combi configuration associates blowing, filling and capping for PET bottles.

Working with Your Recipes

The filling method is carefully chosen to match the specific characteristics of your product: its type (e.g., liquid, thick, particulate), what needs to be protected (flavor, vitamins, color, etc.), its shelf-life (short or long), and its sensitivity to external elements (temperature, oxygen). A complex equation between relative acidity (pH), the presence of nutrients, the presence of O2, the level of sugar content, preserving agents, artificial colorings, stabilizers, and other factors, which has an impact on the conservation and bacteriological quality of your product.

Our sauce and dressing filling machines meet the highest standards of hygiene. They have been awarded 3A level certification and Hema is a member of EHEDG.

We offer 3 rotary filling technologies: Weight - Mass Flow - Volumetric Electronic

HEMA Packaging Machine: Nutri Rotary Filler Features & Benefits

Unique advantages:

  • Electronic rotary filling technology reaching unequalled levels of filling accuracy
  • Hema packaging equipment common frame for optimal hygiene
  • Technical design which adapts to different electronic filling technologies: weight, mass flow or volumetric electronic
  • Optimal filling capacity for all 3 technologies, in terms of production speed efficiency and optimal use of space
  • Common chassis design with a number of possible structures, allowing for the inclusion of numerous environmental options
  • Wide doors, allowing easy access to the filling and capping zone for easy maintenance or tool changeover
  • The filler is equipped with a reduced-sized hopper and off-centered nozzles, ensuring minimal product loss between recipe changes
  • Trust Hema NUTRI packaging and filling solutions for precision and efficiency in the industry for your products



Product Details

Production Flexibility

  • The Hema NUTRI is designed for all types of sauce and dressings - with or without particulates
  • Our NUTRI filler is a flexible machine, known for its reliability for your products
  • Recipes can be changed directly from the touchscreen control panel
  • Accommodates containers in glass, PET, HDPE... and round, oval or with handle shapes
  • Caps application: flat screw, push-pull, twist off…
  • Up to 40,000 bottles per hour, from 80 ml to 5000 ml

High Accuracy Dosing

  • High filling precision: standard deviation < 0.8 grams for one liter
  • Optional net weight or mass flow dosing technologies are available
  • Accurate filling technology will deliver a rapid return on investment

Modular Filler Configuration

  • HEMA NUTRI is available as stand-alone configuration or in Synchrobloc with upstream equipment (rinser,…)
  • Our filler can also be combined with blow molders for PET
  • Number of filling heads: 15 to 66
  • Number of capping heads: 5 to 22
  • Available with optional HEPA or exhaust systems

Fast Product Changeovers

  • Quick, no-tool bottle format change
  • Wide doors, allowing easy access to the filling and capping zone for fast maintenance or transfer tooling changeover
  • NUTRI electronic fillers are equipped with a reduced-sized hopper and off centered filling valves, ensuring minimal product loss between recipe changes

Easy Cleaning and Robust Design

  • Our fillers meet the highest hygiene requirements: they are built following 3A and EHEDG standards. Our load cells are EHEDG certified
  • Filler hygienic design with full stainless-steel base
  • An angular collecting trough collects the product at the end of production and CIP solutions
  • Hema has been providing proven solutions to our customers since 1936



Technical Data

  • Output: up to 40,000 containers/hour
  • Number of filling heads: 15 to 66
  • Number of capping heads: 5 to 22
  • Dosed Product Range: 80 – 5,000 ml
  • Compliant with CE regulations



Options

Additional equipment will be integrated from selected suppliers who meet the same standards for quality and reliability. Suppliers of your choice can also be integrated, following a technical assessment.

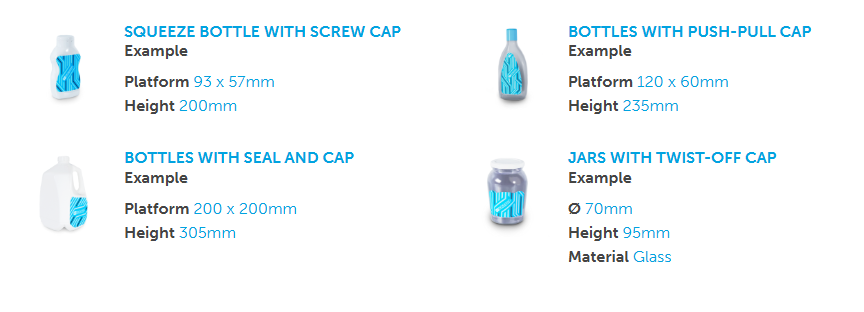

Packaging Styles
