Hema VOLUF Mechanical Rotary Filler

Hema VOLUF Mechanical Rotary Filler

Hema VOLUF is a mechanically driven rotary filler designed for reliable, high-efficiency filling of viscous, homogeneous, and particulate products, with outputs ranging from 3,600 to 72,000 containers per hour and compatibility with a wide variety of containers and food products. Its customizable valves and nozzles ensure accurate, clean filling, while its flexible design supports quick recipe and format changes, easy maintenance, and integration with capping, thermosealing, rinsing, and trimming equipment.

Request Pricing
Questions? We can help.
Contact a Packaging Specialist for product & pricing information.
888-880-0852

About Hema VOLUF

Hema Mechanical Rotary Filler

Mechanically designed, the VOLUF filler is a reliable machine that has proved itself over many years. It is flexible and guarantees easy maintenance and respect for the products to be filled.

The VOLUF is available in Stand Alone or Monobloc configuration with a capper or a thermosealer. VOLUF can also be associated with a neck trimmer or a rinser.

Filling with Experience

  • Speed: 3,600 to 72,000 containers per hour
  • Filling: 6 to 72 heads
  • Capping: 1 to 22 heads
  • Thermosealing: 8 to 36 heads
  • Volume: 25 to 1,825 ml
  • Containers: PET, HDPE, glass bottles or jars, metal cans
  • Products: Sauces, dressings, jam, honey, soups, baby food, condensed or evaporated milk and much more

VOLUF Rotary Filler Features & Benefits

Unique advantages:

  • The valves and nozzles are specifically designed for the products and containers' shape to ensure perfect filling and cleanliness.
  • Choice of 2 types of valves: Cylindrical for semi-liquid products and Conical for fluid products.
  • Filling flexibility: VOLUF technology is perfectly adapted to viscous, homogenous, or products with pieces up to 20 x 20 x 20 mm (or even larger, depending on the texture)
  • Respect for the product thanks to specifically-designed valves and nozzles
  • Reliability of production thanks to kinematic mechanics
  • Machine output levels of over 98%

Hema VOLUF, the mechanical rotary filler for efficient and reliable solutions.



Product Details

Mechanically Designed

  • Mechanical and/or servo drive allows for filling of viscous and products with particulates up to 20x20x20 mm (or even larger, depending on the texture)
  • Number of filling heads: 6 to 72
  • Number of capping heads: 1 to 22
  • Simplified mechanical design for vertical startup

Production Flexibility

  • Hema VOLUF can be used for a wide variety of hot and cold products, in plastic bottles or jars, glass bottle or jars, or metal cans
  • Recipes can be changed directly from the control panel
  • The VOLUF filler is a flexible machine, known for its reliability for sauces, dressing, jams, honey, soups, baby food, and many other applications
  • This machine is available in standalone or monoblock configurations with a capper or thermosealer. It can also be paired with a neck trimmer or rinser
  • Color-coded changeover tools specific to each bottle format are available on the filling and capping turrets. Without the need for special tools, the time required for changeover is minimized

High Accuracy Dosing

  • Guaranteed standard deviation < 1 g per 1,000 ml for homogeneous products
  • For products containing chunks, the standard deviation is < 2 g per 1,000 ml (Note: standard deviation may vary according to chunk sizes and product type)
  • Its valves and nozzles are specifically designed to the specific product and container requirements, ensuring perfect filling and cleanliness
  • With this machine, you have the choice of cylindrical valves for complex products, or conical valves for fluid products

Easy Cleaning and Accessibility

  • Conceived for fast and efficient cleaning
  • Stainless steel washing cabinet, automatic piston extraction
  • Ergonomic and flexible - Large doors for easy operation, format changes, and maintenance
  • Hema VOLUF offers a sanitary and cleanable conical valve design option with possibility of automatic extraction of conical valves for CIP
  • Customizable HMI visualization for optimized production reporting



Technical Data

  • Output: 3,600 to 72,000 containers/hour
  • Number of filling heads: 6 to 72
  • Number of capping heads: 1 to 22
  • Thermosealing heads: 8 to 36
  • Dosed Product Range: 25 – 1,825 ml
  • Containers: PET, HDPE, glass bottles or jars, metal cans



Options

Additional equipment will be integrated from selected suppliers who meet the same standards for quality and reliability. Suppliers of your choice can also be integrated, following a technical assessment.

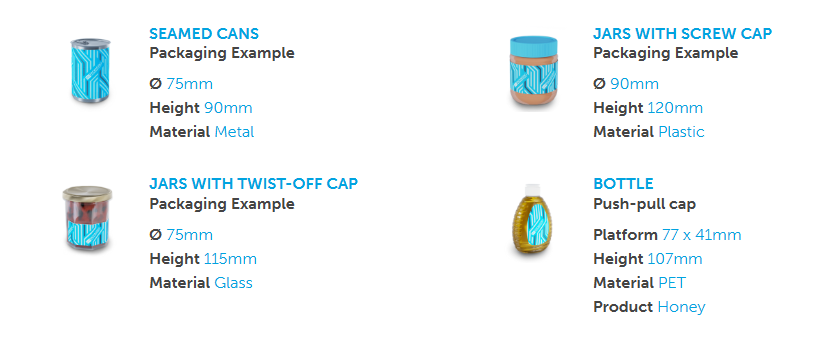

Packaging Styles
