The Pneumatic Scale — PC Mechanical Rotary Capping Machine is a versatile, high-efficiency machine designed for pump, screw, press-on, plug, and overcap applications, with speeds of 30–240 CPM and accurate magnetic torque control. Its positive container handling, mechanical stem guide, quick tool-free changeovers, and optional inspection system ensure reliable pump placement and tightening while preventing slipping, scratching, spilling, and crushing.

Request Pricing
Questions? We can help.
Contact a Packaging Specialist for product & pricing information.
888-880-0852

About Pneumatic Scale PC

BW Packaging's Pneumatic Scale Pump cappers are ideal for all applications using hand and finger pumps. They offer the flexibility to convert between pump capping, screw capping, press-on caps, plugs and overcaps, providing greater versatility, line efficiency and cost savings. Magnetic torque units provide accurate mechanical torque control.

With a variety of anti-rotation mechanisms, the Pump Capper is well-suited for a broad range of container styles. Customized turret pockets control non-round containers, while a gripper belt or clamp table can be added to hold round containers. Because the machine holds each container securely until capped, spilling, slipping, scuffing and crushing are eliminated. Caps are transferred to the capping chuck via a cap disk, and an optional inspection/rejection system isolates containers with missing pumps or straws, or high or incorrectly oriented pumps.

Eliminating container slippage guarantees accurate torque control. The Pump Capper maintains positive straw control during insertion via a cam-operated stem guide. Once inserted, the Pump Capper fully tightens the pump to a pre-set torque, eliminating the need for a retorquer. The PC Capper holds each cap securely during torque application, eliminating scratching.

Contact us today to speak with one of our capping experts about the goals of your project.



Product Details

  • Speeds range between 30–240 containers per minute (CPM) depending on model and project parameters
  • Suited for round and non-round containers in a range of glass, metal, plastic and fiberboard containers
  • Flexibility to convert between pump capping, screw capping and plugging
  • Accurate torque control with Pneumatic Scale's Magnetic Torque Units
  • Tightening the pump to a pre-set torque eliminates the need for a retorquer, for a more streamlined production process
  • Mechanical stem guide system ensures proper pump cap orientation and placement
  • No bottle/no pump feature
  • All-mechanical, sanitary stainless-steel design
  • Color-coded Zepf MARK II® Change Part System enables operators to complete tool-free changeovers in less than 15 minutes
  • Motorized turret height adjustment and mechanical position indicators further facilitate rapid changeovers



Technical Data

  • Speeds range between 30–240 containers per minute (CPM) depending on model and project parameters
  • Range of capping heads from 4 - 20 available
  • Handles straws from .08”–.375” in diameter
  • Handles straws from 2”–9.5” in length
  • Magnetic torque units provide accurate torque control
  • Anti-rotation measures ensure each container is securely held through the capping process

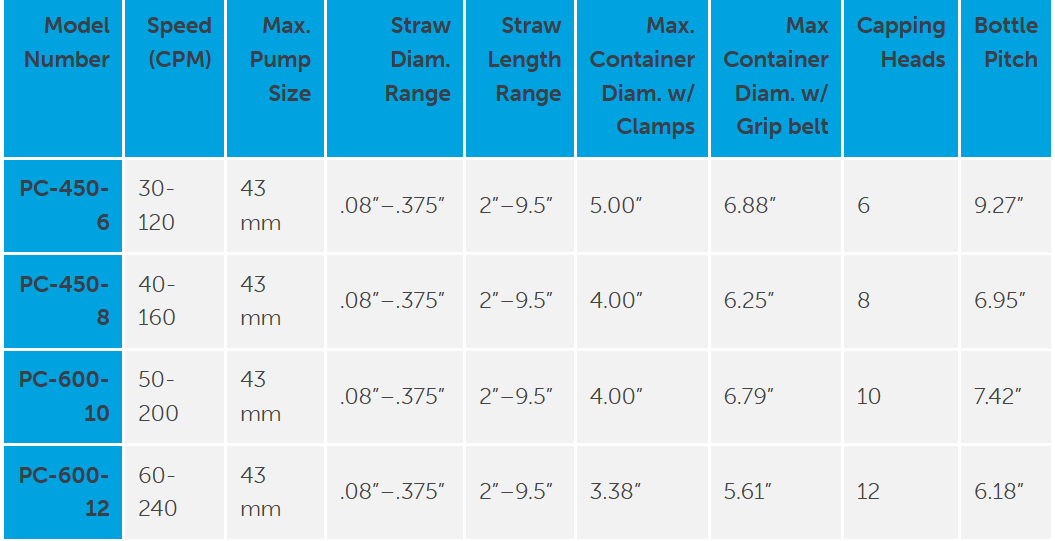

PC Capper Models Comparative Table
