About This Machine
The Thiele Swinger Bag Filling System automatically hangs heavy-duty flat tube or gusseted open-mouth poly, paper or poly woven bags. Featuring a “traveling” bag spout that moves to meet the bag pickup assembly, the Swinger Bag Filling System offers speeds up to 18 bags per minute (7107 Swinger) for fully automatic operation or 20 bags per minute for semi-automatic operation (7105 Swinger).
Our Thiele Bag Filling System delivers several key benefits to your bag filling operation.
Key Benefits
- Easily accessible controls
- Simple operation
- Reduced downtime
- Increased accuracy
Product Details
Features
7105 Swinger
- Semi-automatic operation
- Large, easy to load magazine requiring no shutdown for reloading
- Bag magazine automatically indexes next stack of bags
- Automatic no-bag/no-product sensing device prevents product discharge unless bag is in place
- Adjustable loading tray for accurate bag spouting
- Quick and easy adjustments for bag size changes
- Low profile design integrates with most scales
- Allen-Bradley PLC with HMI
- NEMA 12 electrical construction
7107 Swinger
- Fully automatic operation
- Accommodates many types of bags
- Traveling bag spout increases speed up to 20 bags per minute
- Large, easy-to-load magazine with no shutdown for reloading
- Bag magazine automatically indexes next stack of bags
- Automatic no-bag/no-product sensor prevents the scale from dumping product unless a bag is in place on the holder
- Electro-pneumatic controls require little maintenance
- Quick and easy adjustments for bag size changes
- Low profile, easily integrates with most scales

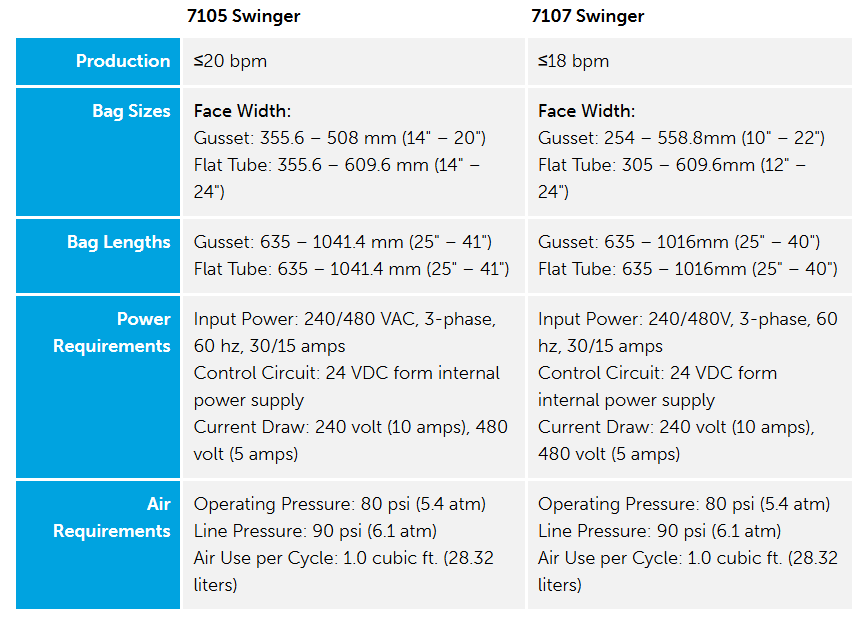

Technical Data Comparison
Options
A few of the many available options include:
- Spout can be sized to bag for maximum speed
- Corrosion resistant construction
- Right or left hand layout available to fit space requirements
- Customized magazine lengths and widths
- Dust collection nozzles
- Scales / PLC scale control
- HMI maintenance reminder banners
- Ethernet connection
- Servo bag to tray
- Servo tray to spout
- Robotic reformer available
- Vee-Trof available
